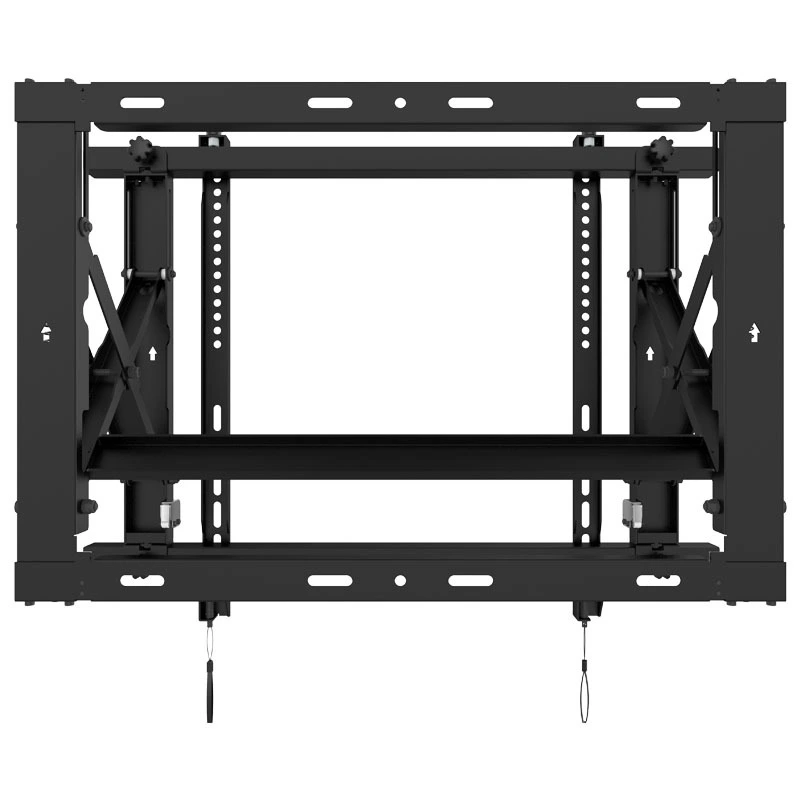

Micro Adjust Pop-Out Video Wall Mount for LCD TV Advertising Screen--MV-70

Name: Micro Adjust Pop-Out Video Wall Mount for LCD TV Advertising Screen--MV-70
Uploaded: 2024-08-06T20:54:30+08:00
Description: Multi-dimensional micro adjustment enables precision alignment of the video wall configuration including depth, height and tilt. This video wall mount features a quick-release pop-out mechanism for easy installation and maintenance.

Multi-dimensional micro adjustment enables precision alignment of the video wall configuration including depth, height and tilt. This video wall mount features a quick-release pop-out mechanism for easy installation and maintenance. Its 6 points micro adjustment function make the distance to wall range is from 67mm to 265.5mm. The mount can hold up to 100lbs (45kg), and suits for most of 32" -70" display. And support VESA from 200 x 200mm (Min) to 600x400mm (Max).

Inquiry

Write a Review

Product specification

Description	Video Wall Mount
TV size	32-70"
Load capacity	50kg
Material	SPCC
VESA	200 x 200mm (Min) , 600x400 (Max)
Distance to Wall	67.7-273mm

Product features

Seamless Contiguity

Pop Out Function

Micro Adjustment

Load up to 50KG

Product display


Pop-Out Video Wall Mount with Micro-Adjustment

Fixed mounts get your display on the wall. That's about it. Once it's up, every misalignment, every service call means pulling the whole panel down. For video wall installations—where four, nine, or twenty-five screens need to read as one continuous surface—that's not a workflow. That's a liability.

The MV-70 is built for the part after the panels are hung: alignment, maintenance, and the years of daily operation that follow.

Three Solid Upgrades

First, the alloy elephant trunk lock. It's a more robust locking mechanism that engages more reliably when the mount is pushed in—no more second-guessing whether the panel is fully secured.

Second, load capacity is now rated at 50kg. That's up from the previous 45kg, giving you extra headroom for heavier commercial displays without changing the bracket footprint.

Third, newly added locking screws on the adjustment points. Once you've dialed in the alignment, lock them down. The panel stays exactly where you set it, even in high-traffic environments where vibration or accidental contact used to knock things out of place.

Safe Lock System

Steel construction with a reinforced locking mechanism. Rated for 50kg per panel. The lock engages automatically when pushed in, so the display stays secure even if someone forgets to double-check.

Tool-Free 6-Point Micro-Adjustment

Here's the reality of video wall installs: even with laser levels and careful measurements, panels end up slightly off. A hair tilted. A millimeter gap that catches the eye.

The MV-70 gives you eight adjustment points, all tool-free:

Up/down: ±13mm vertical shift
Front/back: ±10mm depth alignment

Twist the knobs by hand. Dial each panel into the plane of the wall. Step back. Tweak again. It's the difference between "looks straight" and actually seamless.

Push In / Pop Out for Service Access

This video wall mount extends from 67mm to 265.5mm off the wall. Push it in and the display sits flush. Pop it out and you have full access to the back of the panel—cables, inputs, diagnostics—without disturbing the rest of the array. The mechanism is spring-assisted, so a single technician can service a panel without calling for help.

Product Size
